Bom dia povo, estou tentando instalar o FreeRadius no Debian 7
quando utilizo o comando
freeradius -X
nao passa mais dessa tela
Anexo 51522
alguem pode me ajudar, se tiver algum material sobre instalação do mesmo e poder me mandar agradeço
obrigado
Versão Imprimível
Bom dia povo, estou tentando instalar o FreeRadius no Debian 7
quando utilizo o comando
freeradius -X
nao passa mais dessa tela
Anexo 51522
alguem pode me ajudar, se tiver algum material sobre instalação do mesmo e poder me mandar agradeço
obrigado
Aparentemente, o serviço esta subindo, mas vc esta tentando configura ele sem banco de dados ??
estou segindo esse tuto
http://www.vivaolinux.com.br/artigo/...ebian?pagina=2
ja tentei tbm, e deu o mesm problmeaCitação:
Postado originalmente por Arthur Bernardes
Amigo eu nao entendi sua duvida.Citação:
Postado originalmente por brunobelas
A reclamação é pq ele esta parado ai ? Se sim o motivo é que você iniciou em debug mode logo irá ficar parado ai.
Ou seja
freeradius -X
é a mesma coisa que iniciar ele em debug mode.
Você tentou autenticar ? viu se funcionou?

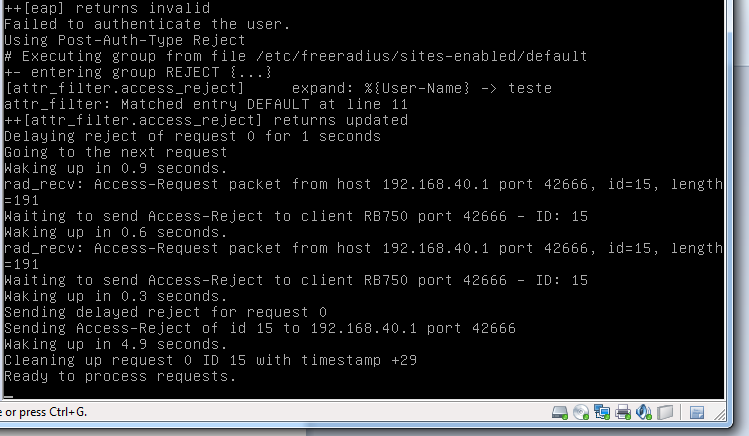

Anexo 51540
alguem pode me ajudar com isso, instalei fiz o banco de dados, criei usuario.
Quando faço o teste como "radtest" fica repetindo essa mensagem o tempo todo, o certo seria apareçer no final
NAS-Port = 1812
rad_recv: Access-Accept packet from host 127.0.0.1 port 1812, id=147, length=20
eu nao vi nada de errado na mensagem pra mim isso quer dizer que funcionou
Estou seguindo esse tutorial aqui
http://getlan.blogspot.com.br/2012/0...ao-de-uma.html
Mesmo assim continua dando RADIUS server not resp.
vou descrever oque estou tentando fazer
estou usando vmware virtualizado com DEBIAN 7 instalado FreeRadius + Mysql + PHPMyAdimin
IP: 192.168.40.2/30
Tudo funciona mas fica dizendo q nao responde
Rodando o freeradius com -X e você tenta autentica você ve a requisição chegando ?
Se não voce pode ter um problema de roteamento ou firewall bloqueando a tentativa...

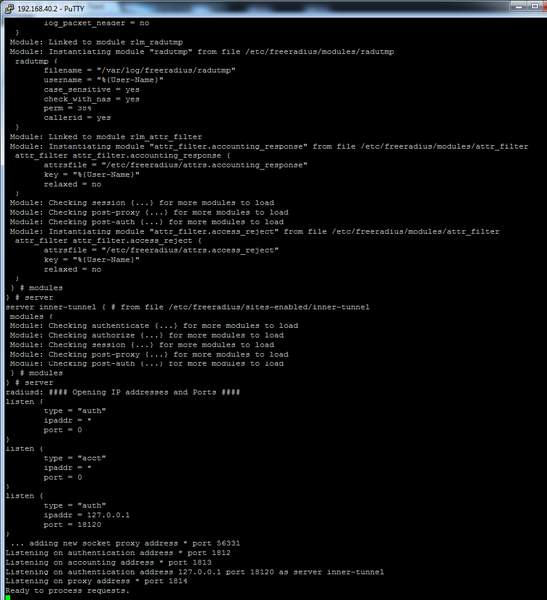

Coloquei freeradius -X
Anexo 51542
Sim o Radius já esta rodando...
Você tem que parar o serviço do radius e depois rodar o freeradius -X
killall -9 freeradius
dps freeradius -X
Anexo 51543
OK agora tenta autenticar e veja oq aparece no log...
No log do mk ta assim
Anexo 51544
tem algum log no freeradius q eu possa ver?
Ué voce iniciou em debug mode se não ta aparecendo nada quer dizer que não ta recebendo a requisição. Logo ou você tem um firewall ou um problema de rede.
Você já tentou pingar o seu servidor de radius pelo mikrotik pra ver se um consegue falar com o outro ?
Pingando normalmente
Anexo 51545
tem algo errado cara..
Pensa só quando voce fez testes com o radtest voce viu o login no debug do freeradius e quando voce tenta logar do mikrotik não ve então penso que a conexao pode estar sendo bloqueada... Voce tem certeza que não tem nenhum firewall nesta maquina ?
tira um screenshot da configuracao de radius no seu mikrotik
Fiz o radtest novamente
Anexo 51546
as config do radius
Anexo 51547
Quando voce fez o radtest oq apareceu do lado do freeradius ?

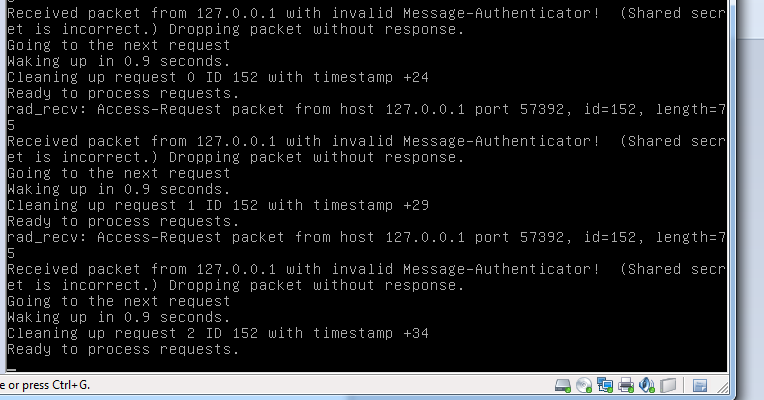

ficou assim no debug
Anexo 51548
Como voce pode ver o problema é bem obvio a shared secret esta errada.
Corrige ela que vai resolver.
Como Marcus pediu, o client.conf
Código :# -*- text -*- ## ## clients.conf -- client configuration directives ## ## $Id$ ####################################################################### # # Define RADIUS clients (usually a NAS, Access Point, etc.). # # Defines a RADIUS client. # # '127.0.0.1' is another name for 'localhost'. It is enabled by default, # to allow testing of the server after an initial installation. If you # are not going to be permitting RADIUS queries from localhost, we suggest # that you delete, or comment out, this entry. # # # # Each client has a "short name" that is used to distinguish it from # other clients. # # In version 1.x, the string after the word "client" was the IP # address of the client. In 2.0, the IP address is configured via # the "ipaddr" or "ipv6addr" fields. For compatibility, the 1.x # format is still accepted. # client localhost { # Allowed values are: # dotted quad (1.2.3.4) # hostname (radius.example.com) ipaddr = 127.0.0.1 # OR, you can use an IPv6 address, but not both # at the same time. # ipv6addr = :: # any. ::1 == localhost # # A note on DNS: We STRONGLY recommend using IP addresses # rather than host names. Using host names means that the # server will do DNS lookups when it starts, making it # dependent on DNS. i.e. If anything goes wrong with DNS, # the server won't start! # # The server also looks up the IP address from DNS once, and # only once, when it starts. If the DNS record is later # updated, the server WILL NOT see that update. # # One client definition can be applied to an entire network. # e.g. 127/8 should be defined with "ipaddr = 127.0.0.0" and # "netmask = 8" # # If not specified, the default netmask is 32 (i.e. /32) # # We do NOT recommend using anything other than 32. There # are usually other, better ways to achieve the same goal. # Using netmasks of other than 32 can cause security issues. # # You can specify overlapping networks (127/8 and 127.0/16) # In that case, the smallest possible network will be used # as the "best match" for the client. # # Clients can also be defined dynamically at run time, based # on any criteria. e.g. SQL lookups, keying off of NAS-Identifier, # etc. # See raddb/sites-available/dynamic-clients for details. # # netmask = 32 # # The shared secret use to "encrypt" and "sign" packets between # the NAS and FreeRADIUS. You MUST change this secret from the # default, otherwise it's not a secret any more! # # The secret can be any string, up to 8k characters in length. # # Control codes can be entered vi octal encoding, # e.g. "\101\102" == "AB" # Quotation marks can be entered by escaping them, # e.g. "foo\"bar" # # A note on security: The security of the RADIUS protocol # depends COMPLETELY on this secret! We recommend using a # shared secret that is composed of: # # upper case letters # lower case letters # numbers # # And is at LEAST 8 characters long, preferably 16 characters in # length. The secret MUST be random, and should not be words, # phrase, or anything else that is recognizable. # # The default secret below is only for testing, and should # not be used in any real environment. # secret = testing123 # # Old-style clients do not send a Message-Authenticator # in an Access-Request. RFC 5080 suggests that all clients # SHOULD include it in an Access-Request. The configuration # item below allows the server to require it. If a client # is required to include a Message-Authenticator and it does # not, then the packet will be silently discarded. # # allowed values: yes, no require_message_authenticator = no # # The short name is used as an alias for the fully qualified # domain name, or the IP address. # # It is accepted for compatibility with 1.x, but it is no # longer necessary in 2.0 # # shortname = localhost # # the following three fields are optional, but may be used by # checkrad.pl for simultaneous use checks # # # The nastype tells 'checkrad.pl' which NAS-specific method to # use to query the NAS for simultaneous use. # # Permitted NAS types are: # # cisco # computone # livingston # max40xx # multitech # netserver # pathras # patton # portslave # tc # usrhiper # other # for all other types # nastype = other # localhost isn't usually a NAS... # # The following two configurations are for future use. # The 'naspasswd' file is currently used to store the NAS # login name and password, which is used by checkrad.pl # when querying the NAS for simultaneous use. # # login = !root # password = someadminpas # # As of 2.0, clients can also be tied to a virtual server. # This is done by setting the "virtual_server" configuration # item, as in the example below. # # virtual_server = home1 # # A pointer to the "home_server_pool" OR a "home_server" # section that contains the CoA configuration for this # client. For an example of a coa home server or pool, # see raddb/sites-available/originate-coa # coa_server = coa } # IPv6 Client [URL="https://under-linux.org/usertag.php?do=list&action=hash&hash=client"]#client[/URL] ::1 { # secret = testing123 # shortname = localhost #} # # All IPv6 Site-local clients [URL="https://under-linux.org/usertag.php?do=list&action=hash&hash=client"]#client[/URL] fe80::/16 { # secret = testing123 # shortname = localhost #} [URL="https://under-linux.org/usertag.php?do=list&action=hash&hash=client"]#client[/URL] some.host.org { # secret = testing123 # shortname = localhost #} # # You can now specify one secret for a network of clients. # When a client request comes in, the BEST match is chosen. # i.e. The entry from the smallest possible network. # [URL="https://under-linux.org/usertag.php?do=list&action=hash&hash=client"]#client[/URL] 192.168.0.0/24 { # secret = testing123-1 # shortname = private-network-1 #} # client 192.168.40.1 { secret = 123456 shortname = RB750 } [URL="https://under-linux.org/usertag.php?do=list&action=hash&hash=client"]#client[/URL] 10.10.10.10 { # # secret and password are mapped through the "secrets" file. # secret = testing123 # shortname = liv1 # # the following three fields are optional, but may be used by # # checkrad.pl for simultaneous usage checks # nastype = livingston # login = !root # password = someadminpas #} ####################################################################### # # Per-socket client lists. The configuration entries are exactly # the same as above, but they are nested inside of a section. # # You can have as many per-socket client lists as you have "listen" # sections, or you can re-use a list among multiple "listen" sections. # # Un-comment this section, and edit a "listen" section to add: # "clients = per_socket_clients". That IP address/port combination # will then accept ONLY the clients listed in this section. # [URL="https://under-linux.org/usertag.php?do=list&action=hash&hash=client"]#client[/URL] s per_socket_clients { # client 192.168.3.4 { # secret = testing123 # } #}

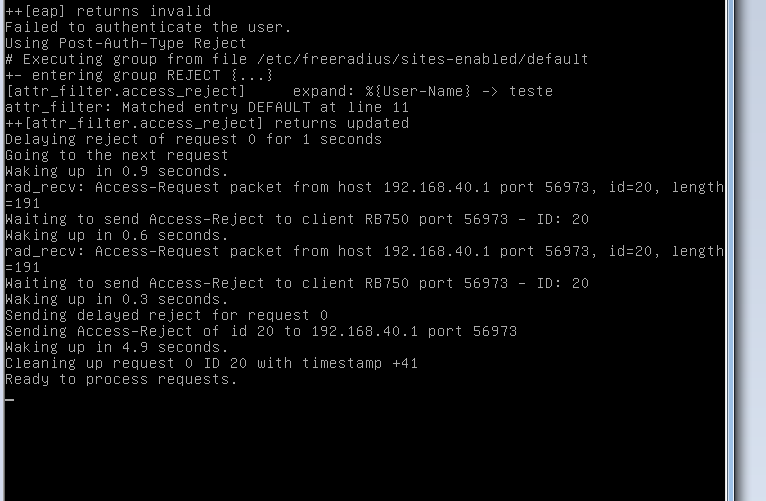

Quando tento logar pelo Hotspot o freeradius fica assim
Anexo 51549
Fiz a modificaçao no client.conf
client 192.168.40.1 {
ipaddr = 192.168.40.1
nastype = other
secret = 123456
shortname = RB750
}
dei ctrl+C
e freeradius -X novamente
tentei logar pelo hotspot

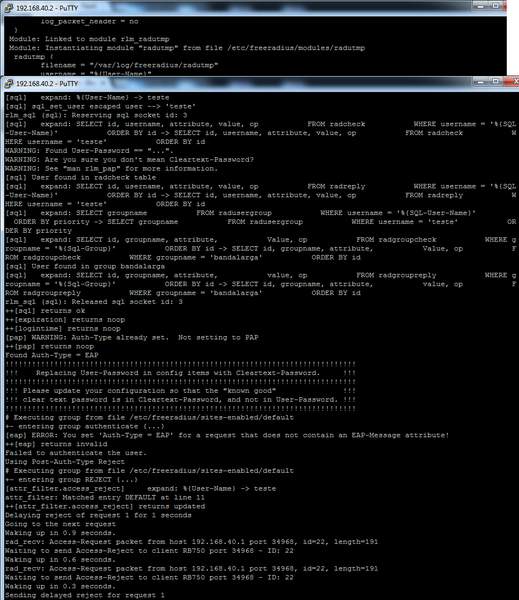

Anexo 51551
freeradius -X
Anexo 51552
depois que tento logar
Anexo 51553

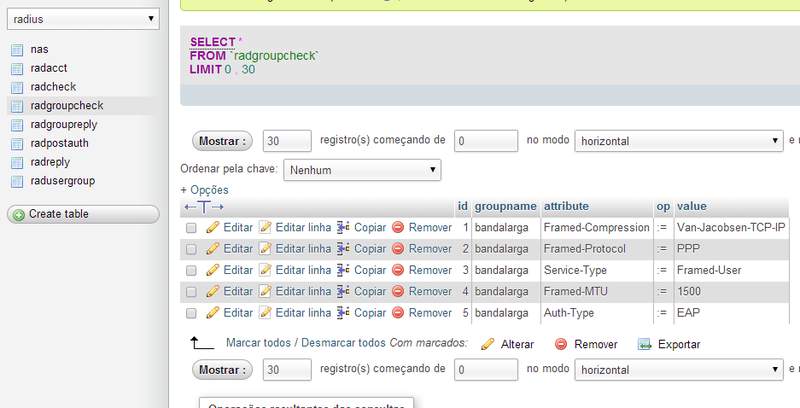

Tabela do db
Anexo 51554
Mudei Auth-Type para PAP
Código :rad_recv: Access-Request packet from host 192.168.40.1 port 40085, id=24, length=191 NAS-Port-Type = Wireless-802.11 Calling-Station-Id = "80:EE:73:1B:CD:CC" Called-Station-Id = "hotspot1" NAS-Port-Id = "teste" User-Name = "teste" NAS-Port = 2147483669 Acct-Session-Id = "80000015" Framed-IP-Address = 10.0.5.254 Mikrotik-Host-IP = 10.0.5.254 CHAP-Challenge = 0x1a07368e7ad9033c2c3afc83f78eab52 CHAP-Password = 0x66af1b7658d5787074736308e564e3900b Service-Type = Login-User WISPr-Logoff-URL = "http://10.0.5.1/logout" NAS-Identifier = "jatonet" NAS-IP-Address = 192.168.40.1 # Executing section authorize from file /etc/freeradius/sites-enabled/default +- entering group authorize {...} ++[preprocess] returns ok [chap] Setting 'Auth-Type := CHAP' ++[chap] returns ok ++[mschap] returns noop ++[digest] returns noop [suffix] No '@' in User-Name = "teste", looking up realm NULL [suffix] No such realm "NULL" ++[suffix] returns noop [eap] No EAP-Message, not doing EAP ++[eap] returns noop ++[files] returns noop [sql] expand: %{User-Name} -> teste [sql] sql_set_user escaped user --> 'teste' rlm_sql (sql): Reserving sql socket id: 4 [sql] expand: SELECT id, username, attribute, value, op FROM radcheck WHERE username = '%{SQL-User-Name}' ORDER BY id -> SELECT id, username, attribute, value, op FROM radcheck WHERE username = 'teste' ORDER BY id WARNING: Found User-Password == "...". WARNING: Are you sure you don't mean Cleartext-Password? WARNING: See "man rlm_pap" for more information. [sql] User found in radcheck table [sql] expand: SELECT id, username, attribute, value, op FROM radreply WHERE username = '%{SQL-User-Name}' ORDER BY id -> SELECT id, username, attribute, value, op FROM radreply WHERE username = 'teste' ORDER BY id [sql] expand: SELECT groupname FROM radusergroup WHERE username = '%{SQL-User-Name}' ORDER BY priority -> SELECT groupname FROM radusergroup WHERE username = 'teste' ORDER BY priority [sql] expand: SELECT id, groupname, attribute, Value, op FROM radgroupcheck WHERE groupname = '%{Sql-Group}' ORDER BY id -> SELECT id, groupname, attribute, Value, op FROM radgroupcheck WHERE groupname = 'bandalarga' ORDER BY id [sql] User found in group bandalarga [sql] expand: SELECT id, groupname, attribute, value, op FROM radgroupreply WHERE groupname = '%{Sql-Group}' ORDER BY id -> SELECT id, groupname, attribute, value, op FROM radgroupreply WHERE groupname = 'bandalarga' ORDER BY id rlm_sql (sql): Released sql socket id: 4 ++[sql] returns ok ++[expiration] returns noop ++[logintime] returns noop [pap] WARNING: Auth-Type already set. Not setting to PAP ++[pap] returns noop Found Auth-Type = PAP !!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!! !!! Replacing User-Password in config items with Cleartext-Password. !!! !!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!! !!! Please update your configuration so that the "known good" !!! !!! clear text password is in Cleartext-Password, and not in User-Password. !!! !!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!! # Executing group from file /etc/freeradius/sites-enabled/default +- entering group PAP {...} [pap] ERROR: You set 'Auth-Type = PAP' for a request that does not contain a User-Password attribute! ++[pap] returns invalid Failed to authenticate the user. Using Post-Auth-Type Reject # Executing group from file /etc/freeradius/sites-enabled/default +- entering group REJECT {...} [attr_filter.access_reject] expand: %{User-Name} -> teste attr_filter: Matched entry DEFAULT at line 11 ++[attr_filter.access_reject] returns updated Delaying reject of request 0 for 1 seconds Going to the next request Waking up in 0.9 seconds. rad_recv: Access-Request packet from host 192.168.40.1 port 40085, id=24, length=191 Waiting to send Access-Reject to client RB750 port 40085 - ID: 24 Waking up in 0.6 seconds. rad_recv: Access-Request packet from host 192.168.40.1 port 40085, id=24, length=191 Waiting to send Access-Reject to client RB750 port 40085 - ID: 24 Waking up in 0.3 seconds. Sending delayed reject for request 0 Sending Access-Reject of id 24 to 192.168.40.1 port 40085 Waking up in 4.9 seconds. Cleaning up request 0 ID 24 with timestamp +37 Ready to process requests.
apresentou isso
me adiciona no skype
[email protected]
Intão pessoal o @MarcusMaciel me deu uma grande ajuda, vou postar agora as correçoes que foram feitas.
O tutorial que segui foi esse
http://getlan.blogspot.com.br/2012/0...ao-de-uma.html
as correçoes feitas foram
no client.conf
client 192.168.40.1 {
ipaddr = 192.168.40.1
nastype = other
secret = 123456
shortname = RB750
}
e modifiquei o auth-type no banco de dados
Auth-Type = CHAP
@oracl3 ja add no skype
