Fala ae Galerinha ! venho aqui pedir uma ajuda basicas para alguma pessoas e a salvação para outras.
estou querendo fazer uma marcação de pacotes na minha rede como de msn de web entre mas como jogos tmb mas até agora não achei uma solução.
queri saber se alguem tem alguma receita para idicar !
para que posso melhor a navageção na minha rede
Des de ja agradeço.
xD

[lessa]

Qual é a versão do seu MikroTik?

A depender da sua versão, pode utilizar o protocolo layer7 para marcar os pacotes. Confira nesse tópico: https://under-linux.org/f226/qos-no-...mpleto-126657/

[DeividMoika]

Versão do meu mikrotik 3.13 !

Dei uma olhada nas regras deles aqui algumas esta funcionando outras não.. Maioria não recebe pacote nenhum, nen nada !

[lessa]

Desative as outras regras ou deixe essas regras novas que estão em firewall mangle em cima das antigas.

Caso queria utilizar outro tipo de marcação de pacotes para HTTP e MSN, seguem duas abaixo:

em ip firewall mangle adicione:

;;; QoS - Http
chain=prerouting action=mark-connection new-connection-mark=conexao-http
passthrough=yes protocol=tcp dst-port=80
chain=prerouting action=mark-packet new-packet-mark=pacotes-http
passthrough=yes connection-mark=conexao-http


;;; QoS - MSN
chain=prerouting action=mark-connection
new-connection-mark=Messenger-Conexao passthrough=yes protocol=tcp
dst-port=1863
chain=prerouting action=mark-connection
new-connection-mark=Messenger-Conexao passthrough=yes protocol=udp
dst-port=1863
chain=prerouting action=mark-connection
new-connection-mark=Messenger-Conexao passthrough=yes protocol=tcp
dst-port=6891-6901
chain=prerouting action=mark-connection
new-connection-mark=Messenger-Conexao passthrough=yes protocol=udp
dst-port=6891-6901
chain=prerouting action=mark-connection
new-connection-mark=Messenger-Conexao passthrough=yes protocol=udp
dst-port=5190
chain=prerouting action=mark-packet new-packet-mark=Messenger-Pacotes
passthrough=no connection-mark=Messenger-Conexao
;;; Alterar MSS do MSN para 1440
chain=forward action=change-mss new-mss=1440 tcp-flags=syn protocol=tcp
dst-port=1863 tcp-mss=1441-65535

Lembre-se de adicionar em Queue Tree para definir a prioridade e banda.

[DeividMoika]

Beleza estou implantando elas aqui agora..estou olhando elas e adicionando elas uma de cada vez !
agora no queue tree como montarei tem como me ajudar ?

[DeividMoika]

Coloquei assim da uma olhada vê se tem alguma coisa errada !

Segue abaixo as regras:

/ip firewall mangle
add action=mark-connection chain=postrouting comment=\
"MARCA\C7\C3O COM E SEM ( TOS )" disabled=no dscp=12 new-connection-mark=\
n-cache passthrough=yes protocol=tcp src-port=3128
add action=mark-connection chain=postrouting comment="" disabled=no dscp=!12 \
new-connection-mark=s-cache passthrough=yes protocol=tcp src-port=3128
add action=mark-packet chain=postrouting comment="CACHE FULL (( MK-AUTH ))" \
connection-mark=n-cache disabled=no new-packet-mark=Cache-Packet \
passthrough=no
add action=mark-connection chain=prerouting comment="QoS - Http" disabled=no \
dst-port=80 new-connection-mark=conexao-http passthrough=yes protocol=tcp
add action=mark-packet chain=prerouting comment="" connection-mark=\
conexao-http disabled=no new-packet-mark=pacotes-http passthrough=yes
add action=mark-connection chain=prerouting comment="QoS - MSN" disabled=no \
dst-port=1863 new-connection-mark=Messenger-Conexao passthrough=yes \
protocol=tcp
add action=mark-connection chain=prerouting comment="" disabled=no dst-port=\
1863 new-connection-mark=Messenger-Conexao passthrough=yes protocol=udp
add action=mark-connection chain=prerouting comment="" disabled=no dst-port=\
6891-6901 new-connection-mark=Messenger-Conexao passthrough=yes protocol=\
tcp
add action=mark-connection chain=prerouting comment="" disabled=no dst-port=\
6891-6901 new-connection-mark=Messenger-Conexao passthrough=yes protocol=\
udp
add action=mark-connection chain=prerouting comment="" disabled=no dst-port=\
5190 new-connection-mark=Messenger-Conexao passthrough=yes protocol=udp
add action=mark-packet chain=prerouting comment="" connection-mark=\
Messenger-Conexao disabled=no new-packet-mark=Messenger-Pacotes \
passthrough=no
add action=change-mss chain=forward comment="Alterar MSS do MSN para 1440" \
disabled=no dst-port=1863 new-mss=1440 protocol=tcp tcp-flags=syn \
tcp-mss=1441-65535

Agora só falta eu montar o queue Tree

[DeividMoika]

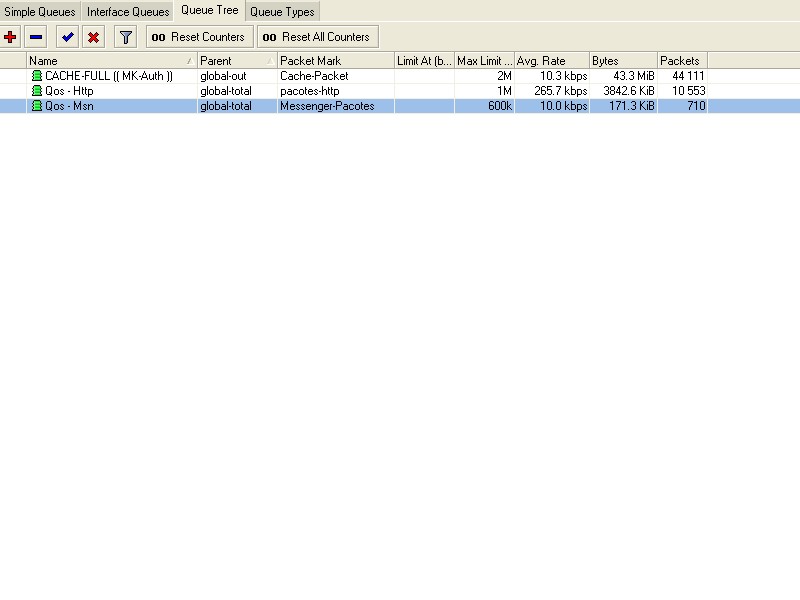

Montei um queue tree aqui vê se esta certo ! ?

[lessa]

Pronto.. As suas configurações estão corretas!


Seguem as configurações da minha queue tree dos pacotes de HTTP e MSN:

name="QoS - 1" parent=global-total packet-mark="" limit-at=0 priority=1
max-limit=0 burst-limit=0 burst-threshold=0 burst-time=0s

name="1-Messenger" parent=QoS - 1 packet-mark=Messenger-Pacotes limit-at=>
queue=default priority=1 max-limit=0 burst-limit=0 burst-threshold=0
burst-time=0s

name="7-Http-Geral" parent=QoS - 1 packet-mark=pacotes-http limit-at=0
queue=default priority=7 max-limit=0 burst-limit=0 burst-threshold=0
burst-time=0s

[DeividMoika]

Beleza Se pode posta ai qual foi a marcação que vc fez. no Mangle do QOS ! porque para mim montar esse queue tree preciso da marcação do qos no mangle ! como segue ai nas suas regras !

[lessa]

Segue o passo-a-passo detalhado:

:: QOS HTTP

1º - Marca os pacotes HTTP porta 80:

/ ip firewall mangle
add chain=prerouting protocol=tcp dst-port=80 action=mark-connection \
new-connection-mark=http_conn passthrough=yes comment="MARCA PACOTES HTTP" \
disabled=no

add chain=prerouting connection-mark=http_conn action=mark-packet \
new-packet-mark=http passthrough=yes comment="" disabled=no

2º - Cria a queue tree com reserva de banda desejada e prioriza em 1 ou 2:

/ queue tree
add name="HTTP_down" parent=global-in packet-mark=http limit-at=100000 queue=default priority=2 max-limit=256000 \
burst-limit=0 burst-threshold=0 burst-time=0s disabled=no

:: QOS MSN
ip firewall mangle
add chain=prerouting protocol=tcp src-port=1863 action=mark-packet new-packet-mark=msn-out passthrough=yes comment="MSN" \
disabled=no
add chain=prerouting protocol=tcp dst-port=1863 action=mark-packet new-packet-mark=msn-in passthrough=yes comment="" \
disabled=no
add chain=forward protocol=tcp tcp-flags=syn action=change-mss new-mss=1360 comment="" disabled=no
-------------
queues tree
add name="msn-in" parent=global-in packet-mark=msn-in limit-at=256000 queue=default priority=1 max-limit=256000 \
burst-limit=0 burst-threshold=0 burst-time=0s disabled=no
add name="msn-out" parent=global-out packet-mark=msn-out limit-at=300000 queue=default priority=1 max-limit=300000 \
burst-limit=0 burst-threshold=0 burst-time=0s disabled=no

:: QOS VOIP
/ ip firewall mangle
new-connection-mark=teste passthrough=yes comment="PORTAS ALTAS - VOIP" \
disabled=no

add chain=prerouting connection-mark=teste action=mark-packet \
new-packet-mark=teste2 passthrough=yes comment="" disabled=no

add chain=prerouting protocol=udp src-port=1571 action=mark-connection \
new-connection-mark=voip_out passthrough=yes comment="VOIP-OUT" \
disabled=no

add chain=prerouting connection-mark=voip_out action=mark-packet \
new-packet-mark=VOIP_OUT passthrough=yes comment="" disabled=no

add chain=prerouting protocol=udp src-port=5060 action=mark-connection \
new-connection-mark=voip_in passthrough=yes comment="VOIP-IN" disabled=no

add chain=prerouting connection-mark=voip_in action=mark-packet \
new-packet-mark=VOIP_IN passthrough=yes comment="" disabled=no

add chain=postrouting protocol=udp dst-port=1571 action=mark-connection \
new-connection-mark=voip3 passthrough=yes comment="VOIP \(PORTA EXTERNA DA \
VONO\)" disabled=no

add chain=postrouting connection-mark=voip3 action=mark-packet \
new-packet-mark=voip3 passthrough=yes comment="" disabled=no

add chain=output connection-state=new action=mark-connection \
new-connection-mark=teste passthrough=yes comment="" disabled=no


Ae colocas estas no queue tree:

/ queue tree
add name="voip_in" parent=global-in packet-mark=VOIP_IN limit-at=200000 \
queue=default priority=1 max-limit=200000 burst-limit=0 burst-threshold=0 \
burst-time=0s disabled=no
add name="voip_out" parent=global-out packet-mark=VOIP_OUT limit-at=128000 \
queue=default priority=1 max-limit=128000 burst-limit=0 burst-threshold=0 \
burst-time=0s disabled=no
add name="voip_in2" parent=global-out packet-mark=VOIP_IN limit-at=200000 \
queue=default priority=1 max-limit=200000 burst-limit=0 burst-threshold=0 \
burst-time=0s disabled=no
add name="voip_out2" parent=global-in packet-mark=VOIP_OUT limit-at=128000 \
queue=default priority=1 max-limit=128000 burst-limit=0 burst-threshold=0 \
burst-time=0s disabled=no
add name="queue1" parent=global-in packet-mark=teste2 limit-at=200000 \



:: Anexo segue o QOS utilizando Layer-7
