  1. amigos, configuro tudo certinho testo com ping depois configuro o hotspot ai vou configurar o web-proxy e acontece como nas imagens, isso em 2 mikrotik´s. onde foi que eu errei?
    Miniaturas de Anexos Miniaturas de Anexos Clique na imagem para uma versão maior

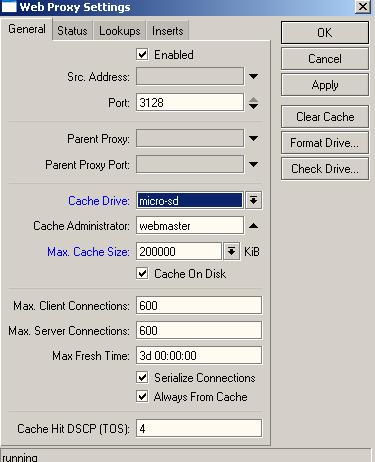

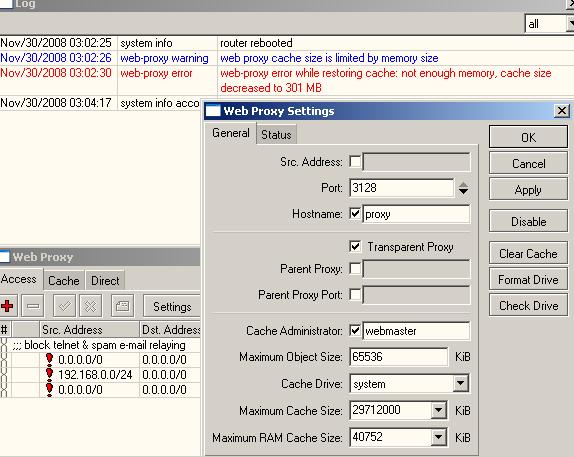

Nome:	         proxy.JPG
Visualizações:	237
Tamanho: 	55,3 KB
ID:      	3135   Clique na imagem para uma versão maior

Nome:	         micro sd.JPG
Visualizações:	220
Tamanho: 	31,7 KB
ID:      	3136

  2. / interface ethernet
    set ether1 name="ether1" mtu=1500 mac-address=00:E0:7D:EE:82:54 arp=enabled \
    disable-running-check=yes auto-negotiation=yes full-duplex=yes \
    cable-settings=default speed=100Mbps comment="" disabled=no
    set ether2 name="ether2" mtu=1500 mac-address=00:04:76:11:2C:98 arp=enabled \
    disable-running-check=yes auto-negotiation=yes full-duplex=yes \
    cable-settings=default speed=100Mbps comment="" disabled=no
    / interface bridge port
    set ether1 bridge=none priority=128 path-cost=10
    set ether2 bridge=none priority=128 path-cost=10
    / interface l2tp-server server
    set enabled=no max-mtu=1460 max-mru=1460 \
    authentication=pap,chap,mschap1,mschap2 default-profile=default-encryption
    / interface pptp-server server
    set enabled=no max-mtu=1460 max-mru=1460 authentication=mschap1,mschap2 \
    keepalive-timeout=30 default-profile=default-encryption
    / ip pool
    add name="hs-pool-2" ranges=192.168.0.2-192.168.0.254
    / ip accounting
    set enabled=no account-local-traffic=no threshold=256
    / ip accounting web-access
    set accessible-via-web=no address=0.0.0.0/0
    / ip service
    set telnet port=23 address=0.0.0.0/0 disabled=no
    set ftp port=21 address=0.0.0.0/0 disabled=no
    set www port=80 address=0.0.0.0/0 disabled=no
    set ssh port=22 address=0.0.0.0/0 disabled=no
    set www-ssl port=443 address=0.0.0.0/0 certificate=none disabled=yes
    / ip socks
    set enabled=no port=1080 connection-idle-timeout=2m max-connections=200
    / ip arp
    / ip upnp
    set enabled=no allow-disable-external-interface=yes show-dummy-rule=yes
    / ip traffic-flow
    set enabled=no interfaces=all cache-entries=4k active-flow-timeout=30m \
    inactive-flow-timeout=15s
    / ip dns
    set primary-dns=200.204.0.10 secondary-dns=200.204.0.138 \
    allow-remote-requests=yes cache-size=2048KiB cache-max-ttl=1w
    / ip dns static
    / ip address
    add address=192.168.1.1/24 network=192.168.1.0 broadcast=192.168.1.255 \
    interface=ether1 comment="" disabled=no
    add address=192.168.0.1/24 network=192.168.0.0 broadcast=192.168.0.255 \
    interface=ether2 comment="" disabled=no
    / ip proxy
    set enabled=no port=8080 parent-proxy=0.0.0.0:0 maximal-client-connecions=1000 \
    maximal-server-connectons=1000
    / ip proxy access
    add dst-port=23-25 action=deny comment="block telnet & spam e-mail relaying" \
    disabled=no
    / ip neighbor discovery
    set ether1 discover=yes
    set ether2 discover=yes
    / ip route
    add dst-address=0.0.0.0/0 gateway=192.168.1.5 scope=255 target-scope=10 \
    comment="" disabled=no
    / ip firewall nat
    add chain=srcnat action=masquerade comment="" disabled=no
    add chain=srcnat src-address=192.168.0.0/24 action=masquerade \
    comment="masquerade hotspot network" disabled=no
    add chain=dstnat in-interface=ether2 src-address=192.168.0.0/24 protocol=tcp \
    dst-port=80 action=redirect to-ports=3128 comment="redirecionar proxy" \
    disabled=no
    / ip firewall connection tracking
    set enabled=yes tcp-syn-sent-timeout=2m tcp-syn-received-timeout=1m \
    tcp-established-timeout=5d tcp-fin-wait-timeout=2m \
    tcp-close-wait-timeout=1m tcp-last-ack-timeout=30s \
    tcp-time-wait-timeout=2m tcp-close-timeout=10s udp-timeout=30s \
    udp-stream-timeout=3m icmp-timeout=30s generic-timeout=10m
    / ip firewall filter
    add chain=input action=drop comment="bloqueio do proxy externo" disabled=no
    / ip firewall service-port
    set ftp ports=21 disabled=no
    set tftp ports=69 disabled=no
    set irc ports=6667 disabled=no
    set h323 disabled=yes
    set quake3 disabled=no
    set mms disabled=no
    set gre disabled=yes
    set pptp disabled=yes
    / ip dhcp-server
    add name="dhcp1" interface=ether2 lease-time=1h address-pool=hs-pool-2 \
    bootp-support=static disabled=no
    / ip dhcp-server config
    set store-leases-disk=5m
    / ip dhcp-server lease
    / ip dhcp-server network
    add address=192.168.0.0/24 gateway=192.168.0.1 comment="hotspot network"
    / ip hotspot
    add name="hs-ether2" interface=ether2 address-pool=hs-pool-2 profile=hsprof1 \
    idle-timeout=5m keepalive-timeout=none addresses-per-mac=2 disabled=no
    / ip hotspot service-port
    set ftp ports=21 disabled=no
    / ip hotspot profile
    set default name="default" hotspot-address=0.0.0.0 dns-name="" \
    html-directory=hotspot rate-limit="" http-proxy=0.0.0.0:0 \
    smtp-server=0.0.0.0 login-by=cookie,http-chap http-cookie-lifetime=3d \
    split-user-domain=no use-radius=no
    add name="hsprof1" hotspot-address=192.168.0.1 \
    dns-name="hotspot.zonewifi.com.br" html-directory=hotspot rate-limit="" \
    http-proxy=0.0.0.0:0 smtp-server=0.0.0.0 login-by=cookie,http-chap \
    http-cookie-lifetime=3d split-user-domain=no use-radius=no
    / ip hotspot user
    add name="allstrit" password="*****" profile=default comment="" \
    disabled=no
    add name="user1" password="user1" profile=default comment="" disabled=no
    / ip hotspot user profile
    set default name="default" idle-timeout=none keepalive-timeout=2m \
    status-autorefresh=1m shared-users=1 transparent-proxy=yes \
    open-status-page=always advertise=no
    / ip ipsec proposal
    add name="default" auth-algorithms=sha1 enc-algorithms=3des lifetime=30m \
    lifebytes=0 pfs-group=modp1024 disabled=no
    / ip web-proxy
    set enabled=yes src-address=0.0.0.0 port=3128 hostname="proxy" \
    transparent-proxy=yes parent-proxy=0.0.0.0:0 \
    cache-administrator="webmaster" max-object-size=65536KiB \
    cache-drive=system max-cache-size=29712000KiB max-ram-cache-size=40752KiB
    / ip web-proxy access
    add dst-port=23-25 action=deny comment="block telnet & spam e-mail relaying" \
    disabled=no
    add src-address=192.168.0.0/24 action=allow comment="" disabled=no
    add action=deny comment="" disabled=no
    / ip web-proxy cache
    add url=":cgi-bin \\?" action=deny comment="no cache dynamic http pages" \
    disabled=no
    add url="https://" action=deny comment="no cache dynamic https pages" \
    disabled=no
    / system logging
    add topics=info prefix="" action=memory disabled=no
    add topics=error prefix="" action=memory disabled=no
    add topics=warning prefix="" action=memory disabled=no
    add topics=critical prefix="" action=echo disabled=no
    / system logging action
    set memory name="memory" target=memory memory-lines=100 memory-stop-on-full=no
    set disk name="disk" target=disk disk-lines=100 disk-stop-on-full=no
    set echo name="echo" target=echo remember=yes
    set remote name="remote" target=remote remote=0.0.0.0:514
    / system upgrade mirror
    set enabled=no primary-server=0.0.0.0 secondary-server=0.0.0.0 \
    check-interval=1d user=""
    / system clock dst
    set dst-delta=+01:00 dst-start="jan/01/1970 00:00:00" dst-end="jan/01/1970 \
    00:00:00"
    / ppp profile
    set default name="default" use-compression=default use-vj-compression=default \
    use-encryption=default only-one=default change-tcp-mss=default comment=""
    set default-encryption name="default-encryption" use-compression=default \
    use-vj-compression=default use-encryption=yes only-one=default \
    change-tcp-mss=default comment=""
    / ppp aaa
    set use-radius=no accounting=yes interim-update=0s
    / queue type
    set default name="default" kind=pfifo pfifo-limit=50
    set ethernet-default name="ethernet-default" kind=pfifo pfifo-limit=50
    set wireless-default name="wireless-default" kind=sfq sfq-perturb=5 \
    sfq-allot=1514
    set synchronous-default name="synchronous-default" kind=red red-limit=60 \
    red-min-threshold=10 red-max-threshold=50 red-burst=20 red-avg-packet=1000
    set hotspot-default name="hotspot-default" kind=sfq sfq-perturb=5 \
    sfq-allot=1514
    / queue simple
    / user
    add name="admin" group=full address=0.0.0.0/0 comment="system default user" \
    disabled=no
    / user group
    add name="read" policy=local,telnet,ssh,reboot,read,test,winbox,password,web,!f\
    tp,!write,!policy
    add name="write" policy=local,telnet,ssh,reboot,read,write,test,winbox,password\
    ,web,!ftp,!policy
    add name="full" policy=local,telnet,ssh,ftp,reboot,read,write,policy,test,winbo\
    x,password,web
    / user aaa
    set use-radius=no accounting=yes interim-update=0s default-group=read
    / radius incoming
    set accept=no port=1700
    / driver
    / snmp
    set enabled=no contact="" location=""
    / snmp community
    set public name="public" address=0.0.0.0/0 read-access=yes
    / tool bandwidth-server
    set enabled=yes authenticate=yes allocate-udp-ports-from=2000 max-sessions=10
    / tool mac-server ping
    set enabled=yes
    / tool e-mail
    set server=0.0.0.0 from="<>"
    / tool sniffer
    set interface=all only-headers=no memory-limit=10 file-name="" file-limit=10 \
    streaming-enabled=no streaming-server=0.0.0.0 filter-stream=yes \
    filter-protocol=ip-only filter-address1=0.0.0.0/0:0-65535 \
    filter-address2=0.0.0.0/0:0-65535
    / tool graphing
    set store-every=5min
    / routing ospf
    set router-id=0.0.0.0 distribute-default=never redistribute-connected=no \
    redistribute-static=no redistribute-rip=no redistribute-bgp=no \
    metric-default=1 metric-connected=20 metric-static=20 metric-rip=20 \
    metric-bgp=20
    / routing ospf area
    set backbone area-id=0.0.0.0 authentication=none prefix-list-import="" \
    prefix-list-export="" disabled=no
    / routing bgp
    set enabled=no as=1 router-id=0.0.0.0 redistribute-static=no \
    redistribute-connected=no redistribute-rip=no redistribute-ospf=no
    / routing rip
    set redistribute-static=no redistribute-connected=no redistribute-ospf=no \
    redistribute-bgp=no metric-static=1 metric-connected=1 metric-ospf=1 \
    metric-bgp=1 update-timer=30s timeout-timer=3m garbage-timer=2m
    Última edição por allstrit; 06-12-2008 às 16:15.
