  1. Bom amigos após testar varias soluções de balanço cheguei a esta configuração,Considerando que funcionam bem.
    Esta configuração também permite fallover no caso de qualquer uma das conexões pppoe cair ou desconectar, A primeira seção das regras de mangle são feitas explicitamente para permitir conexões de entrada como Winbox / ftp / http / etc, basicamente, qualquer coisa que você deseja transmitir para um usuário interno irá funcionar correctamente e ser enviadas de volta o mesmo link (incluindo qualquer coisa adicionado por regras upnp).
    Antes de mais nada gostaria de ressaltar pra nao usar copiar e colar,entender as regras e adaptar as suas necessidades e fundamental para um bom funcionamento do sistema.

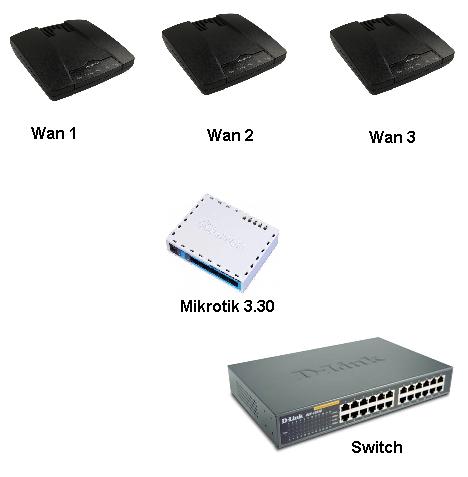

    Clique na imagem para uma versão maior

Nome:	         diagrama.JPG
Visualizações:	668
Tamanho: 	18,5 KB
ID:      	12312

  2. regras
    *******************************************************************
    /ip route
    add check-gateway=arp comment="WAN 3 - Distance 1" disabled=no distance=1 dst-address=0.0.0.0/0 gateway=wan3-pppoe routing-mark=wan3
    add check-gateway=arp comment="WAN 2 - Distance 1" disabled=no distance=1 dst-address=0.0.0.0/0 gateway=wan2-pppoe routing-mark=wan2
    add check-gateway=arp comment="WAN 1 - Distance 1" disabled=no distance=1 dst-address=0.0.0.0/0 gateway=wan1-pppoe routing-mark=wan1
    add check-gateway=arp comment="WAN 1 - Distance 2" disabled=no distance=2 dst-address=0.0.0.0/0 gateway=wan2-pppoe routing-mark=wan1
    add check-gateway=arp comment="WAN 2 - Distance 2" disabled=no distance=2 dst-address=0.0.0.0/0 gateway=wan3-pppoe routing-mark=wan2
    add check-gateway=arp comment="WAN 3 - Distance 2" disabled=no distance=2 dst-address=0.0.0.0/0 gateway=wan1-pppoe routing-mark=wan3
    add check-gateway=arp comment="WAN 1 - Distance 3" disabled=no distance=3 dst-address=0.0.0.0/0 gateway=wan3-pppoe routing-mark=wan1
    add check-gateway=arp comment="WAN 2 - Distance 3" disabled=no distance=3 dst-address=0.0.0.0/0 gateway=wan1-pppoe routing-mark=wan2
    add check-gateway=arp comment="WAN 3 - Distance 3" disabled=no distance=3 dst-address=0.0.0.0/0 gateway=wan2-pppoe routing-mark=wan3
    add check-gateway=arp comment="Default Route - Distance 1" disabled=no distance=1 dst-address=0.0.0.0/0 gateway=wan1-pppoe
    add check-gateway=arp comment="Default Route - Distance 2" disabled=no distance=3 dst-address=0.0.0.0/0 gateway=wan3-pppoe
    add check-gateway=arp comment="Default Route - Distance 3" disabled=no distance=2 dst-address=0.0.0.0/0 gateway=wan2-pppoe
    add check-gateway=arp comment="Rota estática - WAN1" disabled=no distance=1 dst-address=0.0.0.0/0 gateway=wan1-pppoe routing-mark=static-wan1
    add check-gateway=arp comment="Rota estática - WAN2" disabled=no distance=2 dst-address=0.0.0.0/0 gateway=wan2-pppoe routing-mark=static-wan2
    add check-gateway=arp comment="Rota estática - WAN3" disabled=no distance=3 dst-address=0.0.0.0/0 gateway=wan3-pppoe routing-mark=static-wan3
    ###########################################################

    /ip firewall address-list
    add address=200.155.80.0-200.155.255.255 comment=BRADESCO disabled=no list=loopback
    add address=200.220.186.0/24 comment=BRADESCO disabled=no list=loopback
    add address=200.220.178.0/24 comment=BRADESCO disabled=no list=loopback
    add address=64.38.29.0/24 comment=RapidShare disabled=no list=loopback
    add address=208.69.32.0/24 comment="" disabled=no list=loopback
    add address=208.67.217.0/24 comment="" disabled=no list=loopback
    add address=201.7.178.0/24 comment="" disabled=no list=loopback
    add address=201.7.176.0/24 comment="" disabled=no list=loopback
    add address=200.159.128.0/24 comment=BRADESCO disabled=no list=loopback
    add address=201.7.176.0/20 comment="Vdeos - Globo" disabled=no list=loopback
    add address=208.84.247.0/24 comment="Vdeos - terratv" disabled=no list=loopback
    add address=200.154.56.0/24 comment="Vdeos - terratv" disabled=no list=loopback
    add address=200.201.160.0/24 comment="Caixa Economica Federal" disabled=no list=loopback
    add address=200.201.166.0/24 comment="" disabled=no list=loopback
    add address=200.201.173.0/24 comment="" disabled=no list=loopback
    add address=200.201.174.0/24 comment="" disabled=no list=loopback
    add address=200.141.207.3 comment=Detran disabled=no list=loopback
    add address=85.17.216.46 comment=www.easy-share.com disabled=no list=loopback
    add address=200.222.8.9 comment=Detran disabled=no list=loopback

    ###########################################################

    /ip firewall mangle
    add action=accept chain=prerouting comment="FORA DO LOAD BALACED" disabled=no dst-address-list=loopback in-interface=lan
    add action=mark-connection chain=input comment="Marca nova conexão de entrada wan1" connection-state=new disabled=no in-interface=wan1-pppoe new-connection-mark=wan1 \
    passthrough=yes
    add action=mark-connection chain=input comment="Marca nova conexão de entrada wan2" connection-state=new disabled=no in-interface=wan2-pppoe new-connection-mark=wan2 \
    passthrough=yes
    add action=mark-connection chain=input comment="Marca nova conexão de entrada wan3" connection-state=new disabled=no in-interface=wan3-pppoe new-connection-mark=wan3 \
    passthrough=yes
    add action=mark-connection chain=prerouting comment="Marca conexão de entrada estabelecidas wan1" connection-state=established disabled=no in-interface=wan1-pppoe \
    new-connection-mark=wan1 passthrough=yes
    add action=mark-connection chain=prerouting comment="Marca conexão de entrada estabelecidas wan2" connection-state=established disabled=no in-interface=wan2-pppoe \
    new-connection-mark=wan2 passthrough=yes
    add action=mark-connection chain=prerouting comment="Marca conexão de entrada estabelecidas wan3" connection-state=established disabled=no in-interface=wan3-pppoe \
    new-connection-mark=wan3 passthrough=yes
    add action=mark-connection chain=prerouting comment="Marca conexão de entrada relacionadas wan1" connection-state=related disabled=no in-interface=wan1-pppoe \
    new-connection-mark=wan1 passthrough=yes
    add action=mark-connection chain=prerouting comment="Marca conexão de entrada relacionadas wan2" connection-state=related disabled=no in-interface=wan2-pppoe \
    new-connection-mark=wan2 passthrough=yes
    add action=mark-connection chain=prerouting comment="Marca conexão de entrada relacionadas wan3" connection-state=related disabled=no in-interface=wan3-pppoe \
    new-connection-mark=wan3 passthrough=yes
    add action=mark-routing chain=output comment="Marca nova rota de entrada wan1" connection-mark=wan1 disabled=no new-routing-mark=static-wan1 passthrough=no
    add action=mark-routing chain=output comment="Marca nova rota de entrada wan2" connection-mark=wan2 disabled=no new-routing-mark=static-wan2 passthrough=no
    add action=mark-routing chain=output comment="Marca nova rota de entrada wan3" connection-mark=wan3 disabled=no new-routing-mark=static-wan3 passthrough=no
    add action=mark-connection chain=prerouting comment="Marca tráfego que não é local com rand marca PCC (3 possibilidades) - opção 1" connection-state=new disabled=no \
    dst-address-type=!local in-interface=lan new-connection-mark=wan1_pcc_conn passthrough=yes per-connection-classifier=both-addresses:3/0
    add action=mark-connection chain=prerouting comment="Marca tráfego que não é local com rand marca PCC (3 possibilidades) - opção 2" connection-state=new disabled=no \
    dst-address-type=!local in-interface=lan new-connection-mark=wan2_pcc_conn passthrough=yes per-connection-classifier=both-addresses:3/1
    add action=mark-connection chain=prerouting comment="Marca tráfego que não é local com rand marca PCC (3 possibilidades) - opção 3" connection-state=new disabled=no \
    dst-address-type=!local in-interface=lan new-connection-mark=wan3_pcc_conn passthrough=yes per-connection-classifier=both-addresses:3/2
    add action=mark-connection chain=prerouting comment="Marca tráfego estabelecido que não é local com rand marca PCC (3 possibilidades) - opção 1" connection-state=\
    established disabled=no dst-address-type=!local in-interface=lan new-connection-mark=wan1_pcc_conn passthrough=yes per-connection-classifier=\
    both-addresses:3/0
    add action=mark-connection chain=prerouting comment="Marca tráfego estabelecido que não é local com rand marca PCC (3 possibilidades) - opção 2" connection-state=\
    established disabled=no dst-address-type=!local in-interface=lan new-connection-mark=wan2_pcc_conn passthrough=yes per-connection-classifier=\
    both-addresses:3/1
    add action=mark-connection chain=prerouting comment="Marca tráfego estabelecido que não é local com rand marca PCC (3 possibilidades) - opção 3" connection-state=\
    established disabled=no dst-address-type=!local in-interface=lan new-connection-mark=wan3_pcc_conn passthrough=yes per-connection-classifier=\
    both-addresses:3/2
    add action=mark-connection chain=prerouting comment="Marca tráfego relacionado que não é local com rand marca PCC (3 possibilidades) - opção 1" connection-state=related \
    disabled=no dst-address-type=!local in-interface=lan new-connection-mark=wan1_pcc_conn passthrough=yes per-connection-classifier=both-addresses:3/0
    add action=mark-connection chain=prerouting comment="Marca tráfego relacionado que não é local com rand marca PCC (3 possibilidades) - opção 2" connection-state=related \
    disabled=no dst-address-type=!local in-interface=lan new-connection-mark=wan2_pcc_conn passthrough=yes per-connection-classifier=both-addresses:3/1
    add action=mark-connection chain=prerouting comment="Marca tráfego relacionado que não é local com rand marca PCC (3 possibilidades) - opção 3" connection-state=related \
    disabled=no dst-address-type=!local in-interface=lan new-connection-mark=wan3_pcc_conn passthrough=yes per-connection-classifier=both-addresses:3/2
    add action=mark-routing chain=prerouting comment="Marca encaminhamento para marcar PCC - opção 1" connection-mark=wan1_pcc_conn disabled=no new-routing-mark=wan1 passthrough=\
    yes
    add action=mark-routing chain=prerouting comment="Marca encaminhamento para marcar PCC - opção 2" connection-mark=wan2_pcc_conn disabled=no new-routing-mark=wan2 passthrough=\
    yes
    add action=mark-routing chain=prerouting comment="Marca encaminhamento para marcar PCC - opção 3" connection-mark=wan3_pcc_conn disabled=no new-routing-mark=wan3 passthrough=\
    yes

    *******************************************************************

    bom e isso ai galera ja estou usando a 2 meses e esta muito bom! nao esqueça de clicar na estrelinha para agradecer vlw.



  3. Muito bom amigo...

  4. Amigo isso era justamento o q eu estava procurando, qual RB o amigo me indica para usar com essa configuração? vai apenas isso dentro do MK ou precisa colocar mais alguma coisa desculpe as perguntas mas eu nao tenho muita experiencia em configurar MK, muito obrigado, depois eu posto os resultados.



  5. amigo eu uso uma rb750 e funciona muito bem nela, sobre as regras cada caso e um caso eu uso em 3 link de 2M,seria bom vc adaptar as suas necessidades,vc precisaria apenas fazer pppoe cliente e os respectivos mascaramentos.
